Product manual:

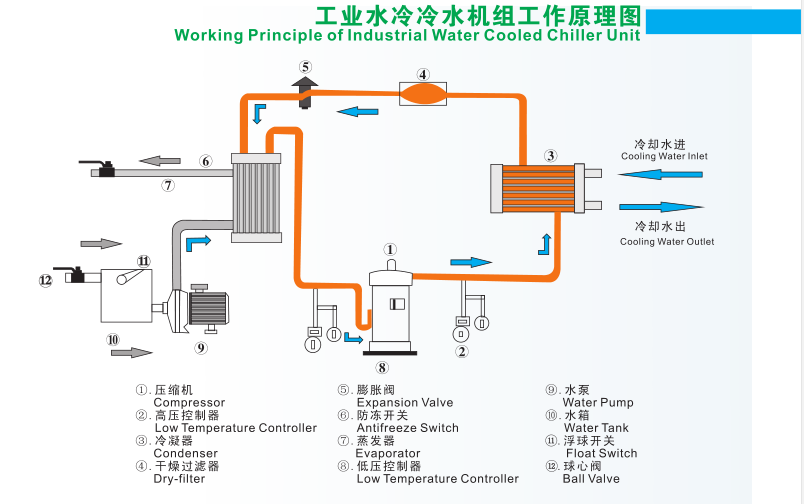

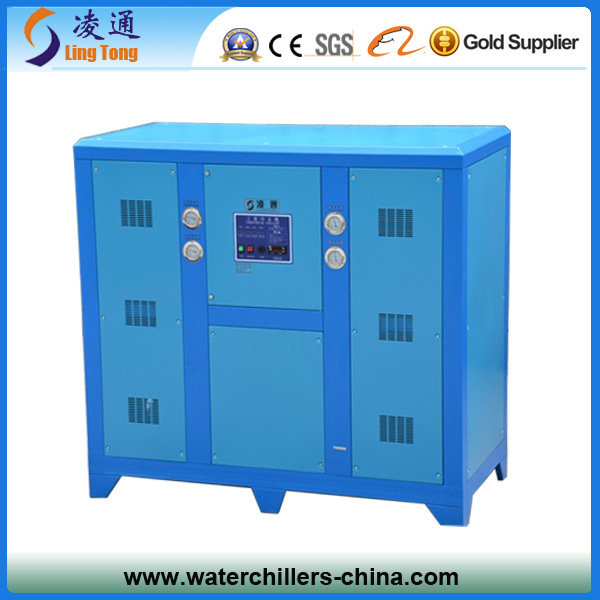

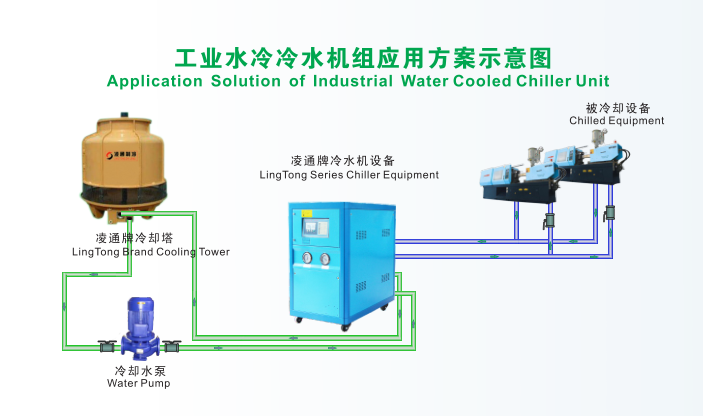

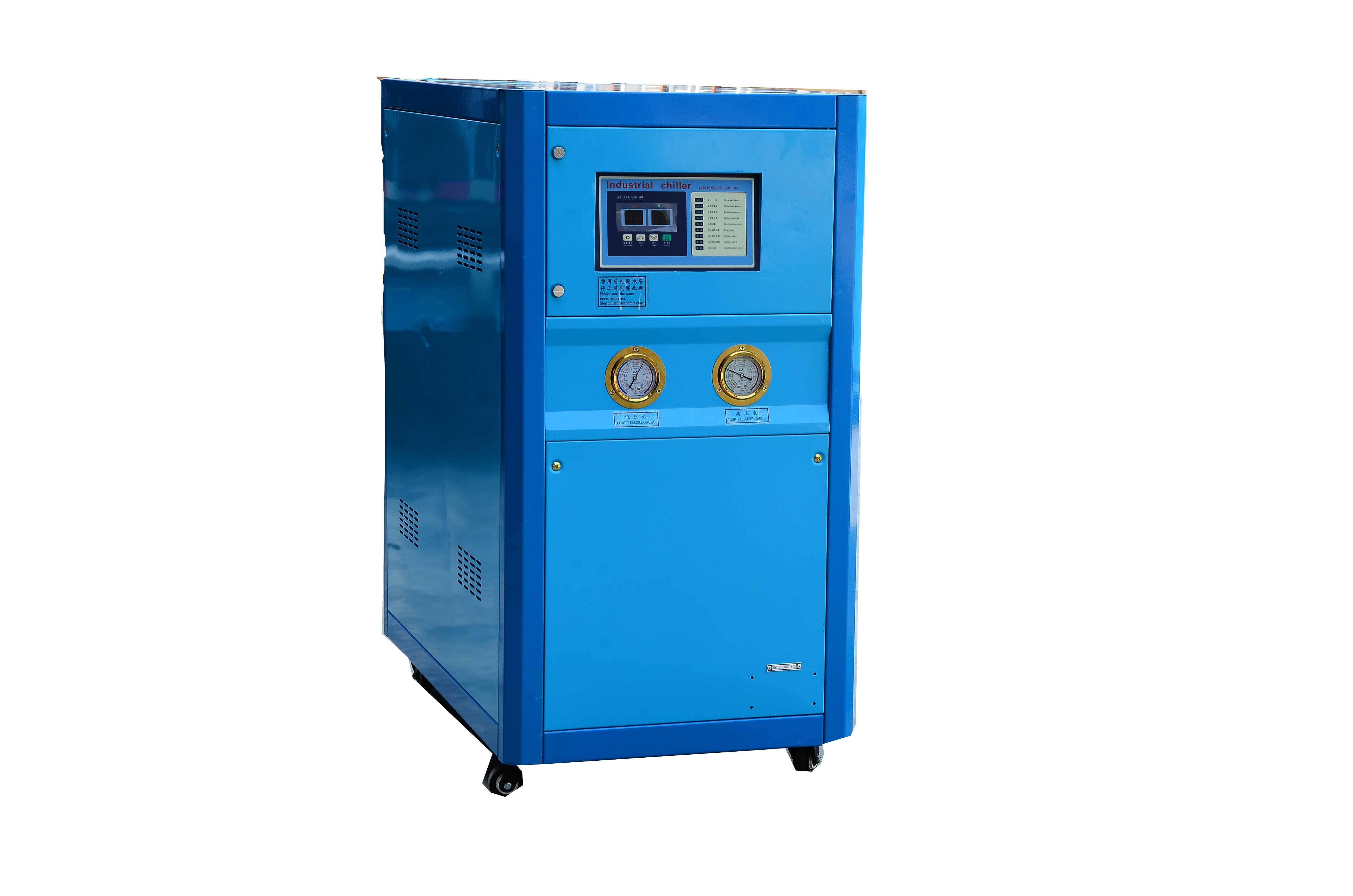

The water-cooled chiller is manufactured using advanced production technology,
excellent quality, compact structure, beautiful appearance widely used in
plastic electroplating electronic manufacturing medicine chemical food
processing laser ultrasonic cooling printing industry, can precisely control
the modern industrial mechanized production of the required temperature, Thus
greatly improving the production efficiency and product quality.
Unit features:
1, the compressor used in Japan DAIKIN COPELAND brands such as the United
States compressor, low noise power and durable;
2, condenser shell mining tube, cooling effect and stable performance;
3, all stainless steel water tank evaporator, built-in automatic replenishment
device;
4, selection of imported pumps, stainless steel pump body for customers to
choose, to prevent secondary pollution;
5, the use of microcomputer digital temperature controller, integrated
operation, simple and practical, high control accuracy;
6, the use of box structure, precision punching CNC punching, electrostatic
powder paint, nice, easy to move;
7, the unit configuration is lack of reverse phase protection, motor overload protection, high and low voltage protection, low temperature protection and other safety protection devices, the system more secure and stable.
Industrial water chiller parameter table (water-cooled):
Item / model number |
LT-03W |
LT-05W |
LT-06W |
LT-08W |
LT-10W |
LT-12W |
LT-15W |
LT-20W |
LT-25W |
LT-30W |
LT-40W |
LT-50W |
LT-60W) |
|
Standard cooling capacity |
kcal/h 50HZ |
7763 |
12900 |
15113 |
20520 |
25600 |
29632 |
40980 |
51200 |
58313 |
82930 |
104350 |
134232 |
157940 |
KW 50HZ |
9 |
15 |
17.5 |
23.8 |
29.6 |
34.3 |
47.5 |
59.3 |
67.6 |
96.1 |
121 |
155.7 |
183.2 |
|
Enter the total power |
KW |
2.7 |
4.6 |
5.3 |
7 |
8.3 |
10.4 |
12.85 |
17.46 |
21.3 |
27 |
38.5 |
43.2 |
50.8 |
power supply |
3PH-380V 50H2 |
|||||||||||||
Refrigerant |
Name |
R22(R134a/407C) |
||||||||||||
control method |
Capillary |
External balance thermostatic expansion valve |
||||||||||||
compressor |
Types |
Fully enclosed scroll type (piston type) |
||||||||||||
Power(KW) |
2.25 |
3.75 |
4.5 |
6 |
7.5 |
9 |
11.25 |
15 |
18.75 |
22.5 |
30 |
37.5 |
45 |
|
Condenser |
Types |
Shell and tube |
||||||||||||
Cooling water (m3h) |
2.3 |
3.6 |
3.68 |
5.4 |
6.87 |
8.2 |
11.2 |
14.1 |
15.8 |
21 |
27.3 |
35 |
42 |
|
Outlet diameter |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2-1/2" |
3" |
3" |
4" |
4" |
|
Evaporator |
Types |
Water tank coil (shell and tube) |
||||||||||||
1.62 |
2.66 |
3.2 |
4.35 |
5.4 |
6.3 |
8.4 |
11 |
12.2 |
18 |
22 |
28 |
34 |
||
Water tank capacity (L) |
60 |
70 |
70 |
150 |
180 |
240 |
300 |
400 |
400 |
540 |
630 |
700 |
800 |
|
Water inlet and outlet pipe diameter |
1" |
1" |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2-1/2" |
2-1/2" |
3" |
3" |
4" |
|
Water Tower |
Power (KW) |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
1.2 |
1.5 |
2.25 |
2.25 |
3.75 |
3.75 |
5.5 |
5.5 |
Yang Cheng (m) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Safety protection |
Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence / phase protection, exhaust overheating protection. |
|||||||||||||
Mechanical Dimensions |
long(MM) |
850 |
900 |
920 |
1100 |
1250 |
1300 |
1450 |
1600 |
1620 |
1650 |
1800 |
1900 |
2000 |
width(MM) |
500 |
500 |
500 |
680 |
600 |
600 |
780 |
850 |
850 |
850 |
900 |
1000 |
1000 |
|
high(MM) |
880 |
980 |
1000 |
1300 |
1300 |
1350 |
1350 |
1460 |
1480 |
1500 |
1650 |
1650 |
1700 |
|
Mechanical weight |
kg |
130 |
160 |
170 |
300 |
450 |
680 |
740 |
820 |
900 |
1100 |
1300 |
1400 |
1500 |
Note: 1. Cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, cooling water inlet and outlet water temperature 30 ℃ / 35 ℃; 2. Working range: chilled water temperature range: 5 ℃ to 35 ℃; Water temperature difference: 3 ℃ to 8 ℃; Cooling water temperature range: 18 ℃ to 37 ℃; Cooling water temperature difference: 3.5 ℃ to 10 ℃;
