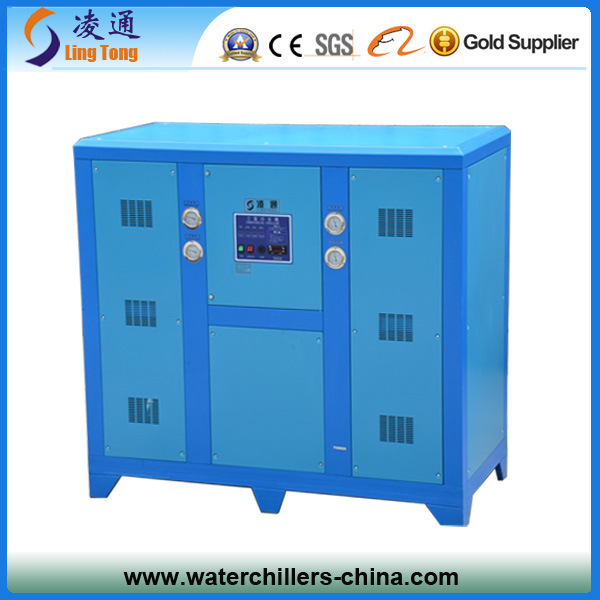

  • 25 HP Industrial water Cooled Scroll Chiller

25 HP Industrial water Cooled Scroll Chiller

Product manual: The water-cooled chiller is manufactured using advanced production technology, excellent quality, compact structure, beautiful appearance widely used in plastic electroplating electronic manufacturing medicine chemical food processing laser ultrasonic cooling printing industry, can...
National advisory hotline0086 755-23419949
Consult us
  • Product description
  • Product parameters
  • Related products
  • Product purchase

Product manual:
The water-cooled chiller is manufactured using advanced production technology, excellent quality, compact structure, beautiful appearance widely used in plastic electroplating electronic manufacturing medicine chemical food processing laser ultrasonic cooling printing industry, can precisely control the modern industrial mechanized production of the required temperature, Thus greatly improving the production efficiency and product quality.

Unit features:
1, the compressor used in Japan DAIKIN COPELAND brands such as the United States compressor, low noise power and durable;
2, condenser shell mining tube, cooling effect and stable performance;
3, all stainless steel water tank evaporator, built-in automatic replenishment device;
4, selection of imported pumps, stainless steel pump body for customers to choose, to prevent secondary pollution;
5, the use of microcomputer digital temperature controller, integrated operation, simple and practical, high control accuracy;
6, the use of box structure, precision punching CNC punching, electrostatic powder paint, nice, easy to move;

7, the unit configuration is lack of reverse phase protection, motor overload protection, high and low voltage protection, low temperature protection and other safety protection devices, the system more secure and stable.




Industrial water chiller parameter table (water-cooled):

Item / model number

LT-03W

LT-05W

LT-06W

LT-08W

LT-10W

LT-12W

LT-15W

LT-20W

LT-25W

LT-30W

LT-40W

LT-50W

LT-60W)

Standard cooling capacity

kcal/h 50HZ

7763

12900

15113

20520

25600

29632

40980

51200

58313

82930

104350

134232

157940

KW 50HZ

9

15

17.5

23.8

29.6

34.3

47.5

59.3

67.6

96.1

121

155.7

183.2

Enter the total power

KW

2.7

4.6

5.3

7

8.3

10.4

12.85

17.46

21.3

27

38.5

43.2

50.8

power supply

3PH-380V  50H2

Refrigerant

Name

R22(R134a/407C)

control method

Capillary

External balance thermostatic expansion valve

compressor

Types

Fully enclosed scroll type (piston type)

PowerKW

2.25

3.75

4.5

6

7.5

9

11.25

15

18.75

22.5

30

37.5

45

Condenser

Types

Shell and tube

Cooling water (m3h)

2.3

3.6

3.68

5.4

6.87

8.2

11.2

14.1

15.8

21

27.3

35

42

Outlet diameter

1-1/2"

1-1/2"

1-1/2"

1-1/2"

1-1/2"

1-1/2"

2"

2"

2-1/2"

3"

3"

4"

4"

Evaporator

Types

Water tank coil (shell and tube)

1.62

2.66

3.2

4.35

5.4

6.3

8.4

11

12.2

18

22

28

34

Water tank capacity (L)

60

70

70

150

180

240

300

400

400

540

630

700

800

Water inlet and outlet pipe diameter

1"

1"

1"

1-1/2"

1-1/2"

1-1/2"

2"

2"

2-1/2"

2-1/2"

3"

3"

4"

Water Tower

Power (KW)

0.37

0.75

0.75

0.75

0.75

1.2

1.5

2.25

2.25

3.75

3.75

5.5

5.5

Yang Cheng (m)

20

20

20

20

20

20

20

20

20

20

20

20

20

Safety protection

Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence / phase protection, exhaust overheating protection.

Mechanical Dimensions

longMM

850

900

920

1100

1250

1300

1450

1600

1620

1650

1800

1900

2000

widthMM

500

500

500

680

600

600

780

850

850

850

900

1000

1000

highMM

880

980

1000

1300

1300

1350

1350

1460

1480

1500

1650

1650

1700

Mechanical weight

kg

130

160

170

300

450

680

740

820

900

1100

1300

1400

1500

Note: 1. Cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, cooling water inlet and outlet water temperature 30 ℃ / 35 ℃; 2. Working range: chilled water temperature range: 5 ℃ to 35 ℃; Water temperature difference: 3 ℃ to 8 ℃; Cooling water temperature range: 18 ℃ to 37 ℃; Cooling water temperature difference: 3.5 ℃ to 10 ℃;
