  • 5P water-cooled chiller

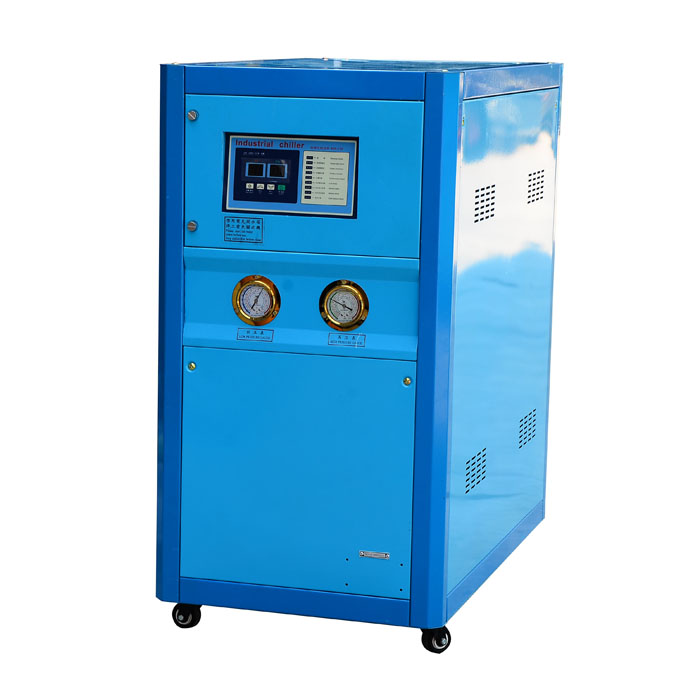

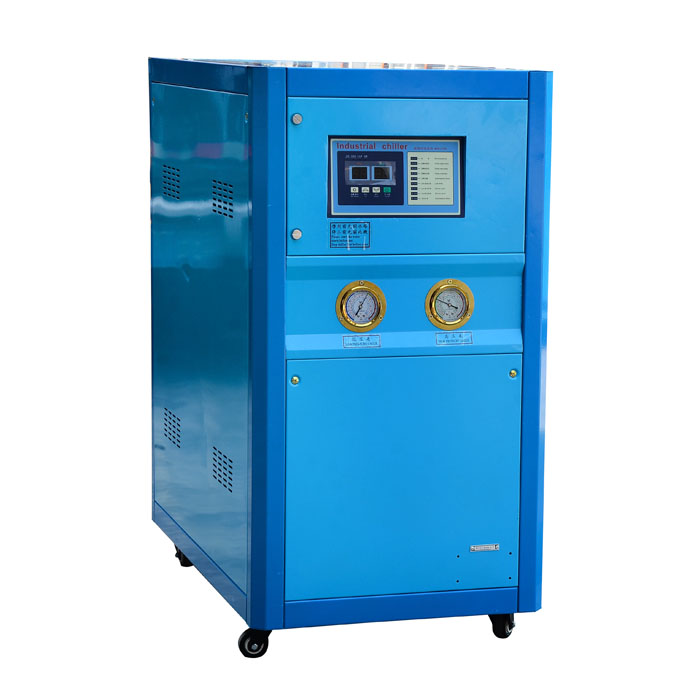

5P water-cooled chiller

Product manual: The water-cooled chiller is manufactured using advanced production technology, excellent quality, compact structure, beautiful appearance widely used in plastic electroplating electronic manufacturing medicine chemical food processing laser ultrasonic cooling printing industry, can p...
National advisory hotline0086 755-23418626
Consult us
  • Product description
  • Product parameters
  • Related products
  • Product purchase
Product manual:
The water-cooled chiller is manufactured using advanced production technology, excellent quality, compact structure, beautiful appearance widely used in plastic electroplating electronic manufacturing medicine chemical food processing laser ultrasonic cooling printing industry, can precisely control the modern industrial mechanized production of the required temperature, Thus greatly improving the production efficiency and product quality.

Unit features:
1, the compressor used in Japan DAIKIN COPELAND brands such as the United States compressor, low noise power and durable;
2, condenser shell mining tube, cooling effect and stable performance;
3, all stainless steel water tank evaporator, built-in automatic replenishment device;
4, selection of imported pumps, stainless steel pump body for customers to choose, to prevent secondary pollution;
5, the use of microcomputer digital temperature controller, integrated operation, simple and practical, high control accuracy;
6, the use of box structure, precision punching CNC punching, electrostatic powder paint, nice, easy to move;
7, the unit configuration is lack of reverse phase protection, motor overload protection, high and low voltage protection, low temperature protection and other safety protection devices, the system more secure and stable.
Industrial water chiller parameter table (water-cooled):
Item / model number LT-03W LT-05W LT-06W LT-08W LT-10W LT-12W LT-15W LT-20W LT-25W LT-30W LT-40W LT-50W LT-60W)
Standard cooling capacity kcal/h 50HZ             7763 12900 15113 20520 25600 29632 40980 51200 58313 82930 104350 134232 157940
KW 50HZ 9 15 17.5 23.8 29.6 34.3 47.5 59.3 67.6 96.1 121 155.7 183.2
Enter the total power KW  2.7 4.6 5.3 7 8.3 10.4 12.85 17.46 21.3 27 38.5 43.2 50.8
power supply 3PH-380V  50H2
Refrigerant Name R22(R134a/407C)
control method Capillary External balance thermostatic expansion valve
compressor Types Fully enclosed scroll type (piston type)
Power(KW) 2.25 3.75 4.5 6 7.5 9 11.25 15 18.75 22.5 30 37.5 45
Condenser Types Shell and tube
Cooling water (m3h) 2.3 3.6 3.68 5.4 6.87 8.2 11.2 14.1 15.8 21 27.3 35 42

Outlet diameter 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 2" 2" 2-1/2" 3" 3" 4" 4"
Evaporator Types Water tank coil (shell and tube)

1.62 2.66 3.2 4.35 5.4 6.3 8.4 11 12.2 18 22 28 34
Water tank capacity (L) 60 70 70 150 180 240 300 400 400 540 630 700 800
Water inlet and outlet pipe diameter 1" 1" 1" 1-1/2" 1-1/2" 1-1/2" 2" 2" 2-1/2" 2-1/2" 3" 3" 4"
Water Tower Power (KW) 0.37 0.75 0.75 0.75 0.75 1.2 1.5 2.25 2.25 3.75 3.75 5.5 5.5
Yang Cheng (m) 20 20 20 20 20 20 20 20 20 20 20 20 20
Safety protection Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence / phase protection, exhaust overheating protection.
Mechanical Dimensions long(MM) 850 900 920 1100 1250 1300 1450 1600 1620 1650 1800 1900 2000
width(MM) 500 500 500 680 600 600 780 850 850 850 900 1000 1000
high(MM) 880 980 1000 1300 1300 1350 1350 1460 1480 1500 1650 1650 1700
Mechanical weight kg 130 160 170 300 450 680 740 820 900 1100 1300 1400 1500
Note: 1. Cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, cooling water inlet and outlet water temperature 30 ℃ / 35 ℃; 2. Working range: chilled water temperature range: 5 ℃ to 35 ℃; Water temperature difference: 3 ℃ to 8 ℃; Cooling water temperature range: 18 ℃ to 37 ℃; Cooling water temperature difference: 3.5 ℃ to 10 ℃;
