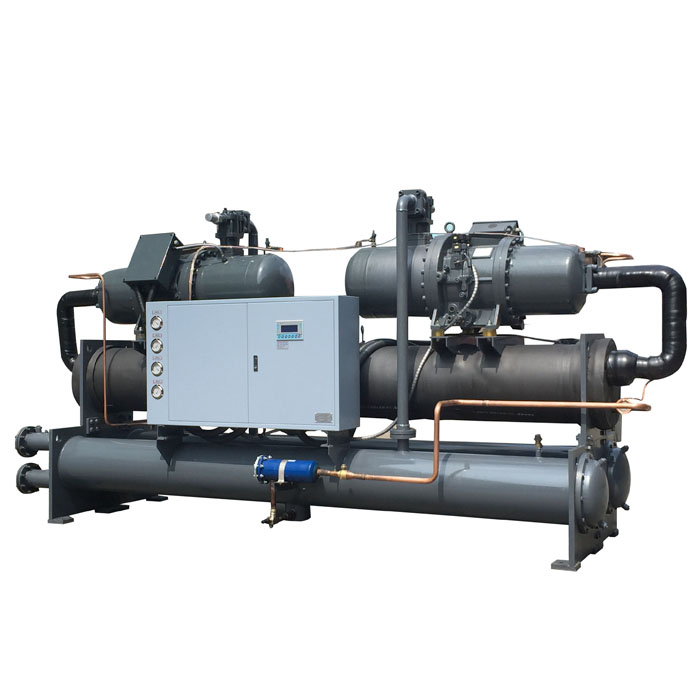

Double screw type cold

Product manual: Air-cooled screw chillers using advanced production technology, superior quality, compact structure, beautiful appearance. Can be widely used in plastics, electroplating, electronics manufacturing, pharmaceutical chemicals, food processing and other industrial establishments and hote...
National advisory hotline0086 755-23419949
Consult us
  • Product description
  • Product parameters
  • Related products
  • Product purchase
Product manual:
Air-cooled screw chillers using advanced production technology, superior quality, compact structure, beautiful appearance. Can be widely used in plastics, electroplating, electronics manufacturing, pharmaceutical chemicals, food processing and other industrial establishments and hotels, shopping malls, office buildings and other civil air-conditioning system.

Unit features:
1, the use of imported international brands BITZER Germany (Bitzer) HANBELL China Taiwan (Han Chung) efficient energy-saving compressor matching high-quality condenser and evaporator, high efficiency, stable performance, low noise and long service life. Industrial PLC unit centralized control, with the compressor energy ratio can be timely and accurate control unit cooling capacity and cooling load matching to ensure the best efficiency of the unit to run and reduce operating costs.
2, the internal integration of low-temperature water-free low-voltage lack of phase delay start anti-phase overload motor overheat oil pressure and many other security protection and processing functions.
3, the entire Chinese user interface, menu-style prompts, can be set to run the unit state, home appliances of the operating environment.
4, the capacity control can be four-stage (100% -75% -50% -25%) or three-stage (100% -66% -33%) and non-segment control system.
5, a unique built-in hydraulic system, no need to ensure that the compressor oil pump to maintain the best lubrication, oil separator with double-layer filter, oil filter effect, heat converter can play the maximum capacity.
6, high-performance internal thread brass, enhanced heat transfer effect, more energy efficient. The use of the latest CAD / CAM design and processing technology, CNC machining center production is completed, compact, small size 15, durable-month. U-shaped structure of the heat transfer tube bundle, easy maintenance, to prevent leakage of refrigerant phenomenon.
7, the choice of all imported steel pipe, high-speed drilling and other professional equipment manufacturing, steel fins closer contact, heat transfer efficiency is higher, with small size, light weight, more compact and reasonable structure.
8, no need to install the cooling tower cooling water pumps and other equipment for water shortage and poor water quality areas. Can be installed in the rooftop roof and other open spaces, no special room, save space.
Air-cooled screw-type series of technical parameters:
Parameter model LT-040ASH LT-050ASH LT-060ASH LT-075ASH LT-085ASH LT-100ASH LT-120ASH LT-150ASH LT-170ASH LT-200ASH LT-240ASH
Cooling capacity
kcal/h    90128 114724 130290 178020 214140 249400 291540 356040 428280 498800 583080
KW  104.8 133.4 151.5 207 249 290 339 414 498 580 678
Enter the total power KW  39.7 49.7 56.3 75.3 88.3 103.4 118.2 150.6 176.6 206.8 236.4
Maximum operating current A 86 108 128 162 180 216 246 324 360 432 492
power supply
3ph-380v 50HZ(200V/220V/415V  50HZ/60HZ))



Refrigerant name
R22



Charge kg 28 35 43 53 60 72 86 106 120 144 172
control method
External balance thermostatic expansion valve



compressor Types of
Semi-closed screw type



power KW  37.3 46.1 51.9 69.9 81.7 96.2 109.4 69.9×2 81.7×2 96.2×2 109.4×2
start up
Y-△



Energy adjustment range 0-25-50-75-100



Evaporator Types of
Korean shell and tube



Frozen water m3/h 18 22.9 26 35.5 42.7 49.7 58.1 71 85.4 99.4 116.2
Water inlet and outlet pipe diameter lnch 3" 3" 3" 3" 4" 4" 4" 5" 6" 6" 6"
Condenser Types of
Air-cooled high-performance internal thread copper tube sets of aluminum



Fans Types of Low noise external rotor fan



power KW  3.4 3.6 4.4 5.4 6.6 7.2 8.8 10.8 13.2 14.4 17.6
Air volume m3/h 40000 48000 55000 71000 82000 95000 115000 142000 164000 190000 230000
Safety protection device Compressor overheating protection, unit overload protection devices, high and low pressure protection devices, frost protection devices, power reverse phase / phase protection.



Water flow opening and closing




Mechanical Dimensions long mm 2000 2200 2500 3200 3500 4000 4800 6200 6800 7800 4000
width mm 1500 1700 1850 1950 1950 1950 1950 2000 2000 1950 1950
high mm 2000 2000 2150 2200 2200 2200 2200 2200 2200 2200 2200
Unit weight kg 1300 1620 1930 2260 2420 2860 3250 4200 4450 4850 5300
Operating weight kg 1390 1870 2210 2420 2680 3020 3460 4430 4680 5120 5630
Note:
1. Cooling capacity is based on the entrance of the chilled water temperature 12 ℃, outlet temperature 7 ℃; cooling into the wind temperature 30 ℃, the outlet temperature calculated 40 ℃;
2. Working range: chilled water temperature range: 5 ℃ to 35 ℃; chilled water out of the water temperature: 3 ℃ to 8 ℃ in the ambient temperature is not higher than 35 ℃ environment;
The right to change the above parameters or dimensions without prior notice is reserved.
