Product manual:
Air-cooled screw chillers using advanced production technology, excellent quality, compact structure, beautiful appearance can be widely used in plastic electroplating electronic manufacturing pharmaceutical chemical food processing refrigeration and refrigeration and other industrial establishments and hotels, shopping malls, office buildings and other civil buildings Air Conditioning System.
Unit features:
1, the use of imported international brands BITZER Germany (Bitzer) HANBELL China Taiwan (Han Chung) higher energy-saving compressor compressor match with high-quality condenser and evaporator, high efficiency, low noise, stable performance, long life. Industrial PLC unit centralized control, with the energy ratio of the compressor can be timely and accurate control unit cooling capacity and cooling load matching to ensure the best efficiency of the unit to run and reduce operating costs.
2, the internal integration of low-temperature water-free low-voltage lack of phase delay start anti-phase overload motor overheat oil pressure and many other security protection and processing functions.
3, the entire Chinese user interface, menu-style prompts, can be set to run the unit state, home appliances of the operating environment.
4, the capacity control can be four-stage (100% -75% -50% -25%) or three-stage (100% -66% -33%) and non-segment control system.
5, a unique built-in hydraulic system, no need to ensure that the compressor oil pump to maintain the best lubrication, oil separator with double-layer filter, oil filter effect, heat converter can play the maximum capacity.
6, high-performance internal thread brass, enhanced heat transfer effect, more energy-efficient higher education. The use of the latest CAD / CAM design and processing technology, CNC machining center production is completed, compact, small size 15. Durable. U-shaped structure of the heat transfer tube bundle, easy maintenance, to prevent leakage of refrigerant phenomenon.
7, the selection of all imported steel pipe, high-speed drilling and other professional equipment manufacturing, steel fins closer contact, heat transfer efficiency, with small size, light weight, the structure is more compact platform management and so on.

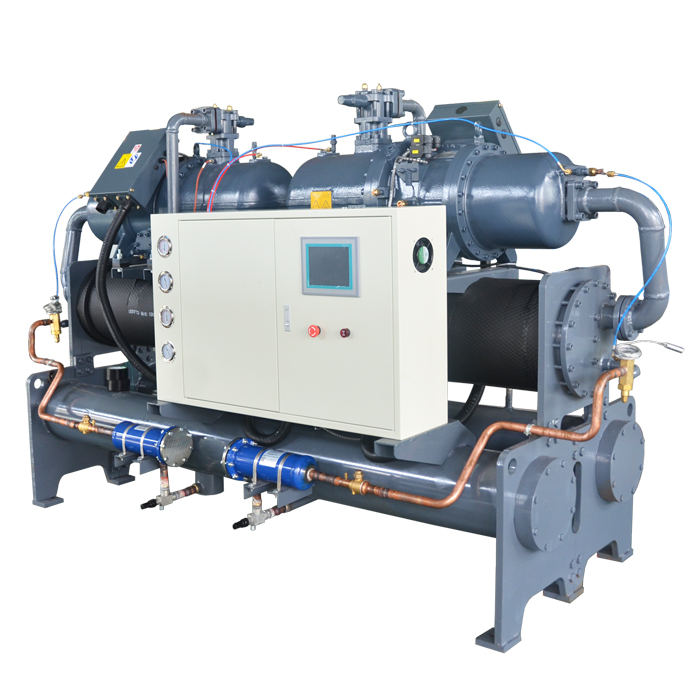

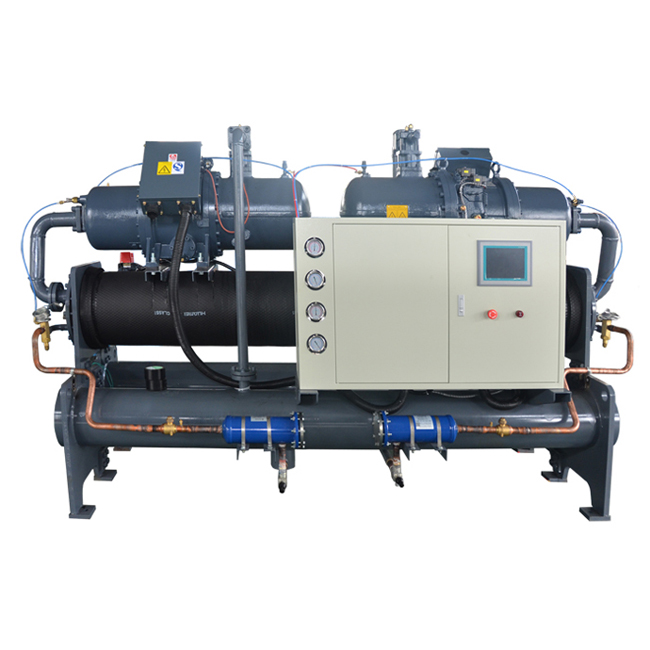

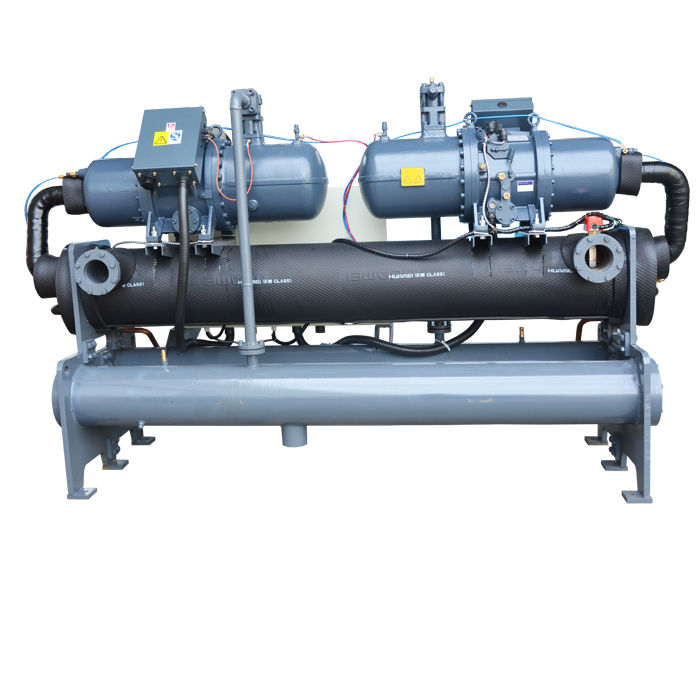

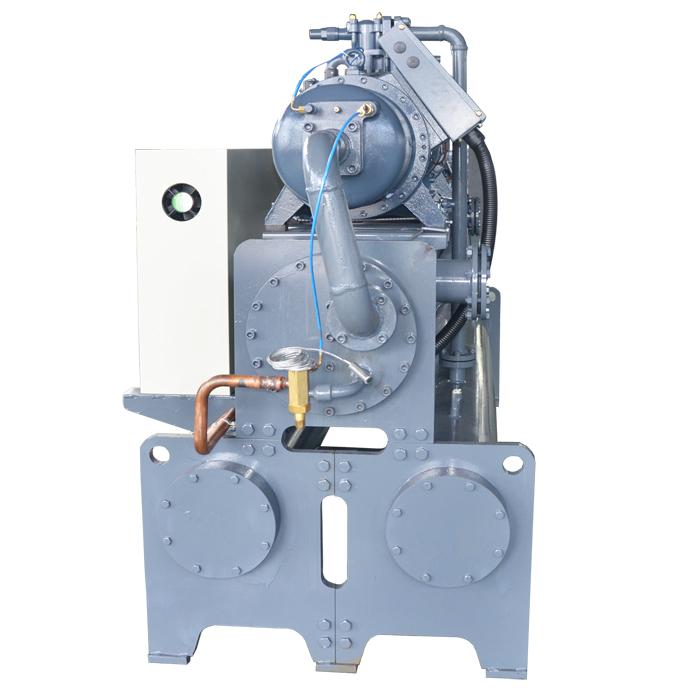

Water-cooled screw chiller series Technical parameters:
Parameters Model
LT-200DW
LT-220DW
LT-240DW
LT-280DW
LT-320DW
LT-360DW
LT-400DW
LT-440DW
LT-480DW
Norminal Cooling Capacity
kcal/h
595120
675100
763680
751640
810120
1035440
1190240
1350200
1527360
KW
692
785
888
874
942
1204
1384
1570
1776
Input Power
KW
153.9
172.4
194.8
195.2
224.4
271.8
307.8
344.8
389.6
Max Current
A
333
383
431
442
508
582
666
766
862
Power
3ph-380v 50HZ(200V/220V/415V 50HZ/60HZ))
Refrigerant
Type
R22(R407c/R134a)
Charge
kg
112
125
137
160
182
205
230
225
278
Control Method
External Balance Thermostatic Expansion Valve
Compressor
Type
Semi-hermetic Screw Type
Power
KW
153.9
172.4
194.8
97.6×2
112.2×2
135.9×2
153.9×2
172.4×2
194.8×2
Start Up
Y-△
Capacity control
%
0-25-50-75-100
Evaporator
Type
Korean Shell and Tube
Chilled water flow
m3/h
118.6
134.6
152.2
151.7
178.8
196
222.2
241
268.6
Connection Pipe Dia
lnch
6"
6"
6"
6"
6"
8"
8"
8"
8"
Condensor
Type
Shell and Tube
Cooling water flow
m3/h
145
164.1
185.6
186.1
219.8
241.4
275.1
298.2
330.5
Connection Pipe Dia
lnch
6"
6"
6"
5"×2
5"×2
6"×2
6"×2
6"×2
6"×2
Safety protection device
Compressor overheating protection, unit overload protection devices, high and low pressure protection devices, frost protection devices, power reverse phase / phase protection.
Fusible, water opening and closing
Dimension
Length
mm
3460
3460
3460
3750
3750
4230
4230
4230
4420
Width
mm
1350
1350
1550
1320
1320
1580
1580
1580
1760
Height
mm
1760
1760
1820
2150
2150
2230
2230
2230
2360
Shipping Weight
kg
2950
3050
3160
4230
4730
5380
5810
5920
6450
Running Weight
kg
3210
3270
3420
4560
5150
5860
6050
6330
6730
Note
1. Design cooling condition: outside dry bulb temperature 35℃,leaving water temperature 7℃,water flow 0.172m3(h.kw);
2. Cooling capacity of R407c unit will be 5% lower than R22 unit;
3. Installation site distribution, wiring, please refer to our unit nameplate or installation instructions;
4. The above for 60Hz parameters for special voltage model need to special order;
5. The company product design specification, function, performance parameters and shape may change, without prior notice, the specific parameters, please refer to our product nameplate.
