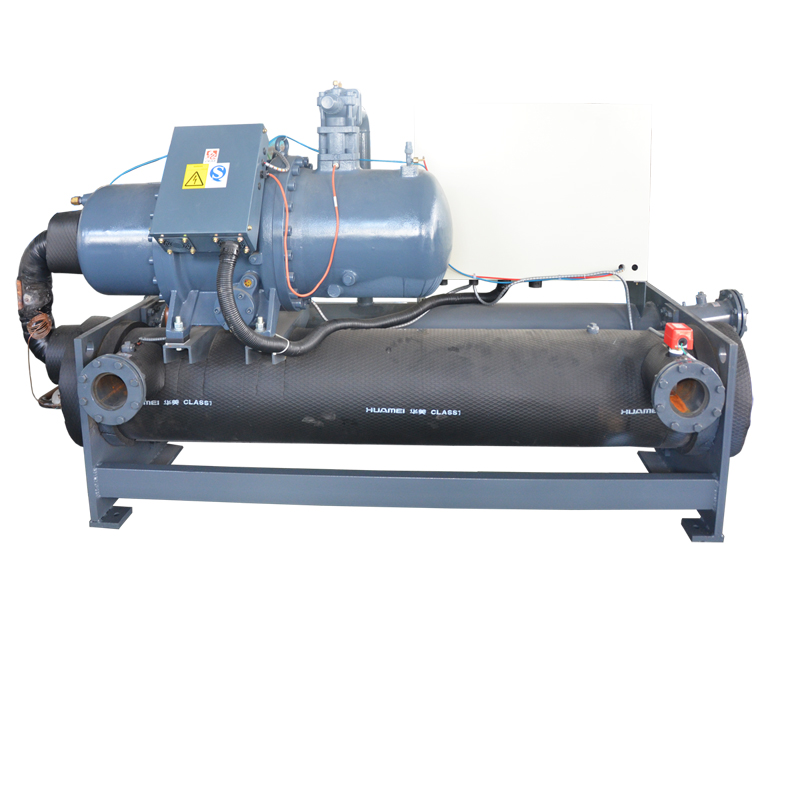

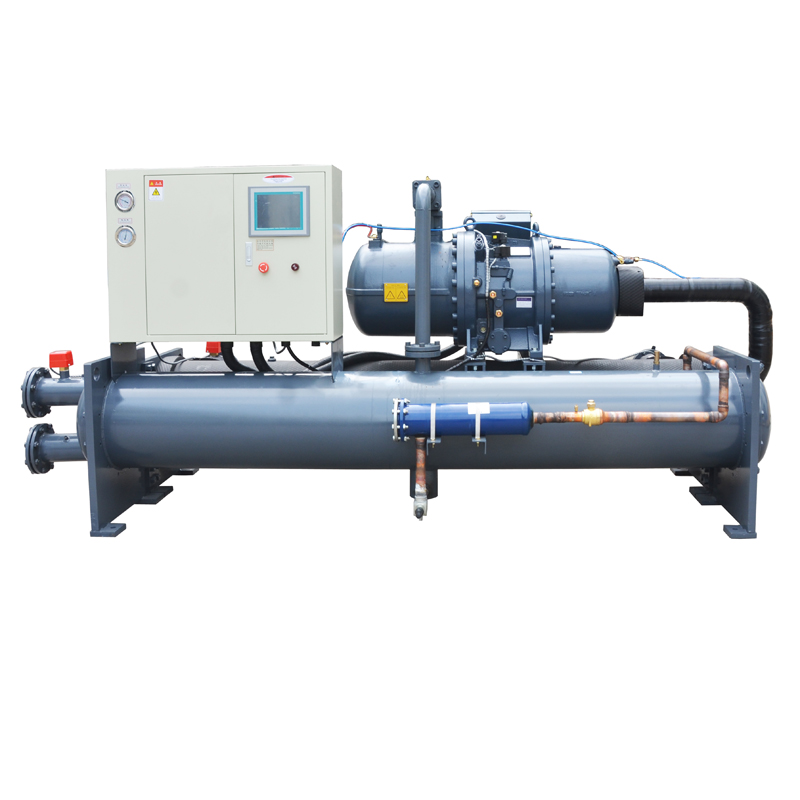

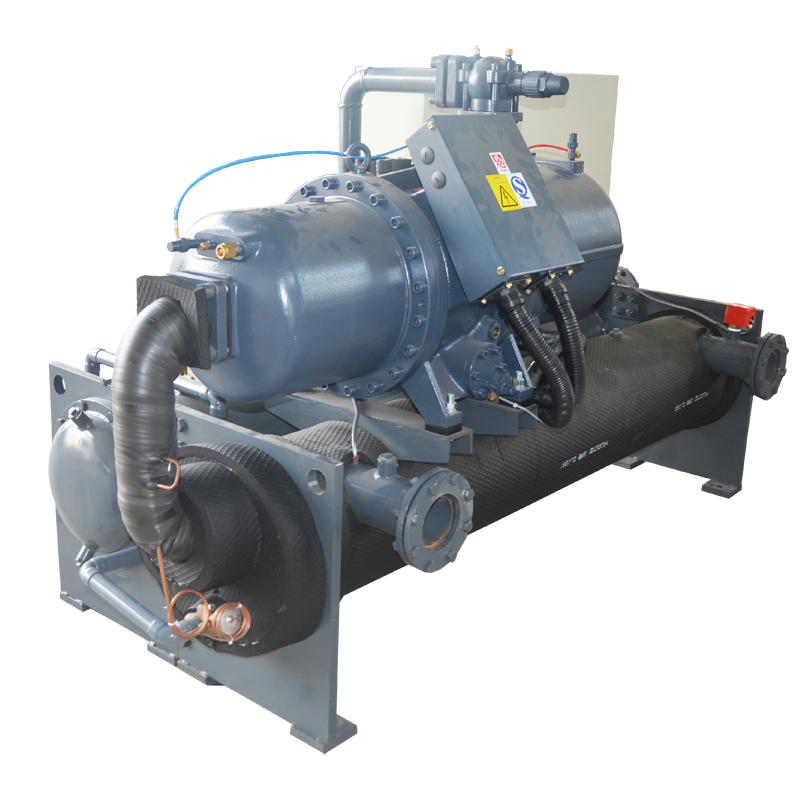

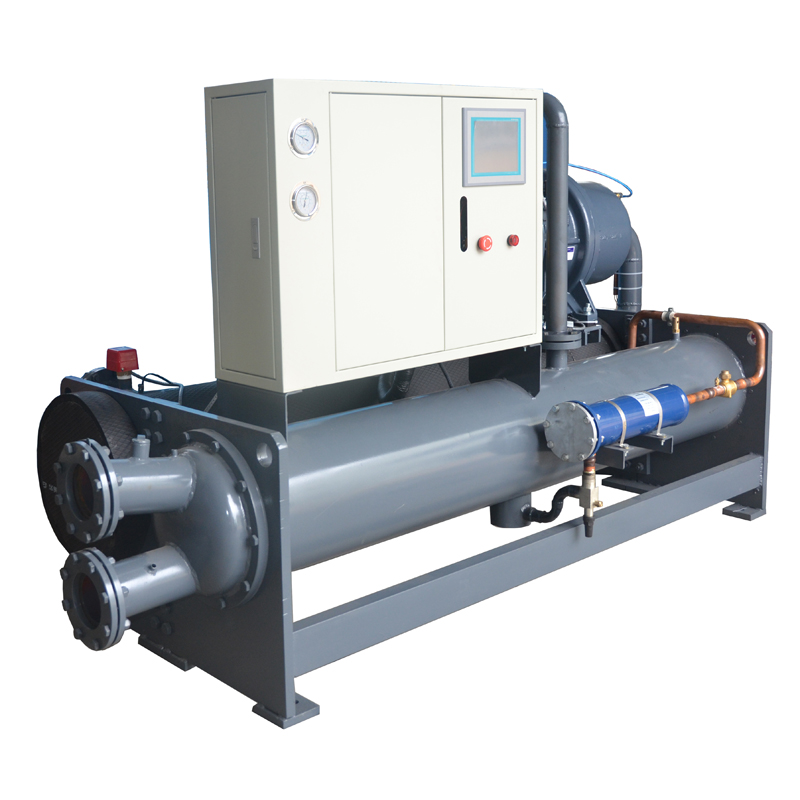

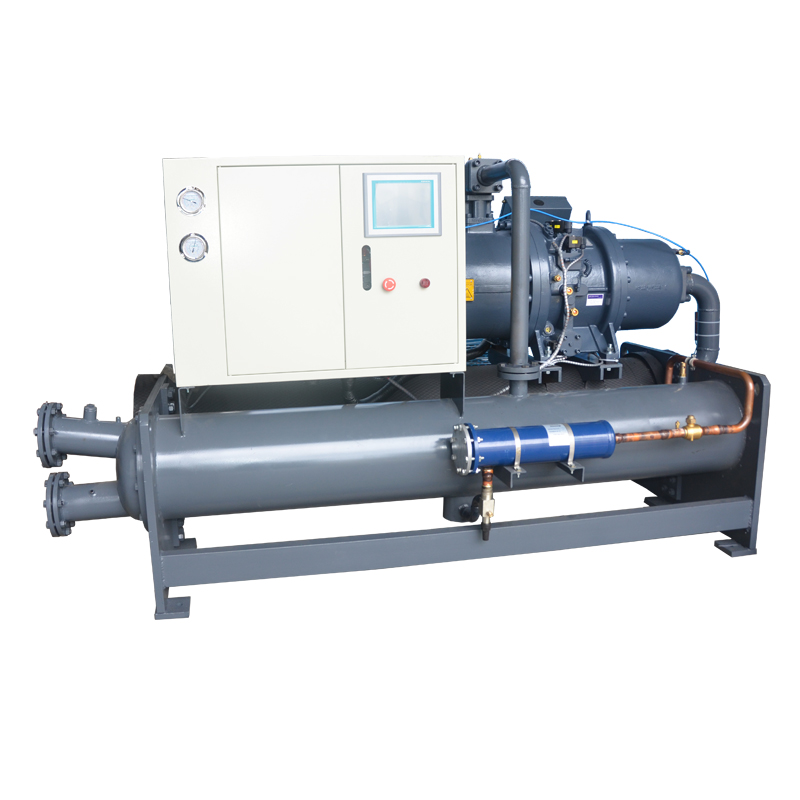

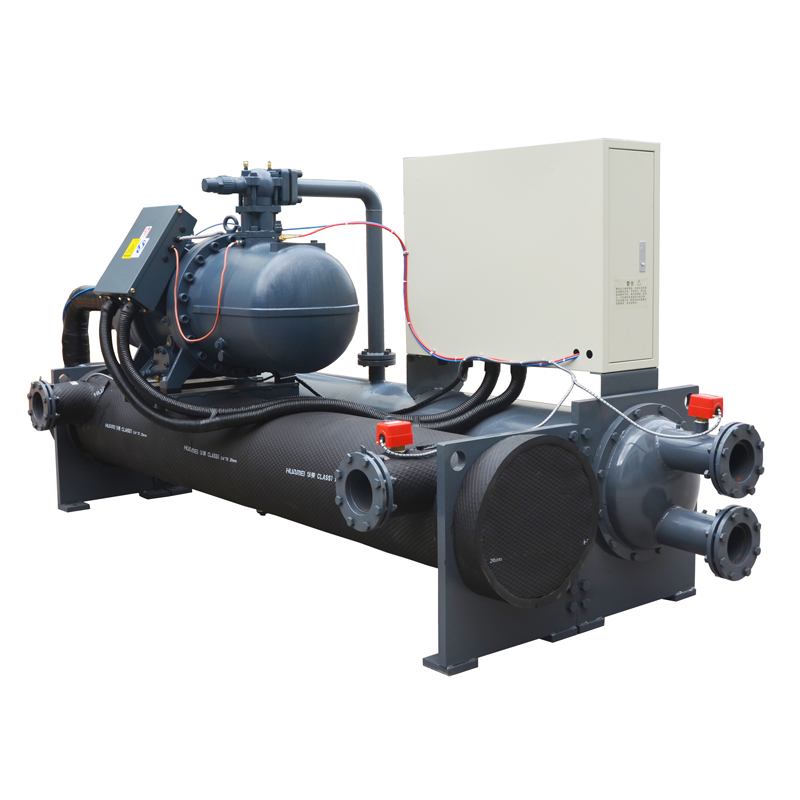

Product manual:
Air-cooled screw chillers using advanced production
technology, excellent quality, compact structure, beautiful appearance can be
widely used in plastic electroplating electronic manufacturing pharmaceutical
chemical food processing refrigeration and refrigeration and other industrial
establishments and hotels, shopping malls, office buildings and other civil
buildings Air Conditioning System.
Unit features:
1, the use of imported international brands BITZER Germany
(Bitzer) HANBELL China Taiwan (Han Chung) higher energy-saving compressor
compressor match with high-quality condenser and evaporator, high efficiency,
low noise, stable performance, long life. Industrial PLC unit centralized
control, with the energy ratio of the compressor can be timely and accurate
control unit cooling capacity and cooling load matching to ensure the best
efficiency of the unit to run and reduce operating costs.
2, the internal integration of low-temperature water-free
low-voltage lack of phase delay start anti-phase overload motor overheat oil
pressure and many other security protection and processing functions.
3, the entire Chinese user interface, menu-style prompts, can
be set to run the unit state, home appliances of the operating environment.
4, the capacity control can be four-stage (100% -75% -50%
-25%) or three-stage (100% -66% -33%) and non-segment control system.
5, a unique built-in hydraulic system, no need to ensure that
the compressor oil pump to maintain the best lubrication, oil separator with
double-layer filter, oil filter effect, heat converter can play the maximum
capacity.
6, high-performance internal thread brass, enhanced heat
transfer effect, more energy-efficient higher education. The use of the latest
CAD / CAM design and processing technology, CNC machining center production is
completed, compact, small size 15. Durable. U-shaped structure of the heat
transfer tube bundle, easy maintenance, to prevent leakage of refrigerant
phenomenon.
7, the selection of all imported steel pipe, high-speed drilling and other professional equipment manufacturing, steel fins closer contact, heat transfer efficiency, with small size, light weight, the structure is more compact platform management and so on.

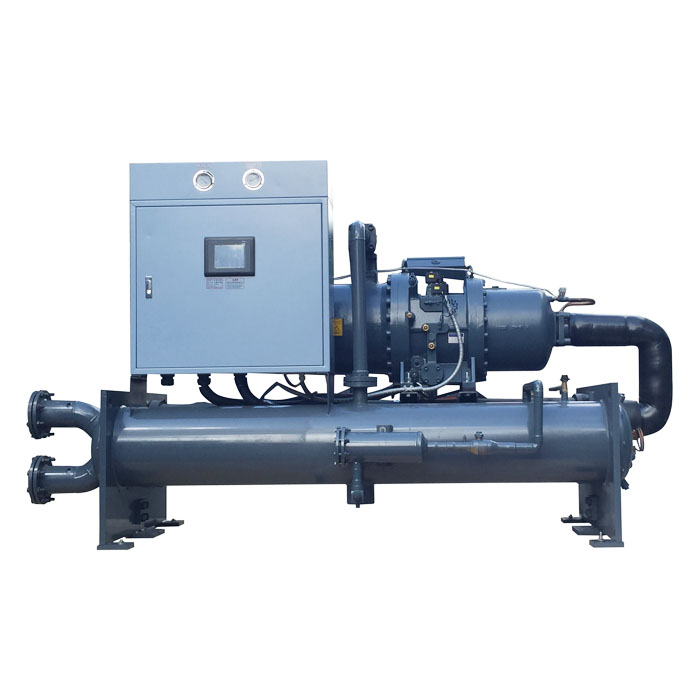

Water-cooled screw chiller series Technical parameters:
Parameter Model | LT-040DW | LT-050DW | LT-060DW | LT-075DW | LT-085DW | LT-100DW | LT-120DW | LT-140DW | LT-160DW | LT-180DW | ||
Norminal Cooling Capacity | kcal/h | 103888 | 130204 | 152564 | 212420 | 241660 | 276060 | 342280 | 375820 | 405060 | 517720 | |
KW | 120.8 | 151.4 | 177.4 | 247 | 281 | 321 | 398 | 437 | 471 | 602 | ||
Input Power | KW | 30.9 | 37.9 | 43.9 | 56.8 | 65 | 74 | 90.3 | 97.6 | 112.2 | 135.9 | |
Max Current | A | 70 | 94 | 128 | 123 | 140 | 160 | 195 | 221 | 254 | 291 | |
Power |
|
3ph-380v 50HZ(200V/220V/415V 50HZ/60HZ)) |
|
|
|
|||||||
Refrigerant | Type |
|
R22(R407c/R134a) |
|
|
|
||||||
Charge | kg | 22 | 27 | 33 | 42 | 48 | 55 | 68 | 77 | 88 | 105 | |
Control Method |
|
External Balance Thermostatic Expansion Valve |
|
|
|
|||||||
Compressor | Type |
|
Semi-hermetic Screw Type |
|
|
|
||||||
Power | KW | 37.3 | 46.1 | 51.9 | 69.9 | 81.7 | 96.2 | 109.4 | 97.6 | 112.2 | 135.9 | |
Start up |
|
Y-△ |
|
|
|
|||||||
Capacity control | % | 0-25-50-75-100 |
|
|
|
|||||||
Evaporator | Type |
|
Korean Shell and Tube |
|
|
|
||||||
Chilled water flow | m3/h | 20.7 | 26 | 30.4 | 42.3 | 48.2 | 55 | 68.2 | 74.9 | 80.7 | 103.2 | |
Connection Pipe Dia | lnch | 3" | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 5" | 6" | |
Condenser | Type |
|
Shell and tube |
|
|
|
||||||
Cooling water flow | m3/h | 26 | 32.5 | 37.8 | 52.1 | 59.3 | 67.7 | 83.7 | 91.6 | 100 | 126.5 | |
Connection Pipe Dia | lnch | 3" | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 5" | 6" | |
Safety protection device | Compressor overheating protection, unit overload protection devices, high and low pressure protection devices, frost protection devices, power reverse phase / phase protection. |
|
|
|
||||||||
Fusible, water opening and closing |
|
|
|
|||||||||
Dimension | Length | mm | 1960 | 2130 | 2450 | 2450 | 2750 | 2750 | 2750 | 2750 | 3460 | 3460 |
Width | mm | 855 | 855 | 985 | 985 | 1050 | 1050 | 1050 | 1050 | 1250 | 1350 | |
Height | mm | 1540 | 1540 | 1600 | 1600 | 1600 | 1600 | 1730 | 1730 | 1730 | 1760 | |
Shipping Weight | kg | 820 | 950 | 1120 | 1300 | 1560 | 1720 | 2030 | 2200 | 2410 | 2630 | |
Running Weight | kg | 970 | 1060 | 1270 | 1480 | 1780 | 1960 | 2250 | 2430 | 2470 | 2920 |
Note
1. Design cooling condition: outside dry bulb temperature 35℃,leaving water temperature 7℃,water flow 0.172m3(h.kw);
2. Cooling capacity of R407c unit will be 5% lower than R22 unit;
3. Installation site distribution, wiring, please refer to our unit nameplate or installation instructions;
4. The above for 60Hz parameters for special voltage model need to special order;
5. The company product design specification, function, performance parameters and shape may change, without prior notice, the specific parameters, please refer to our product nameplate.
