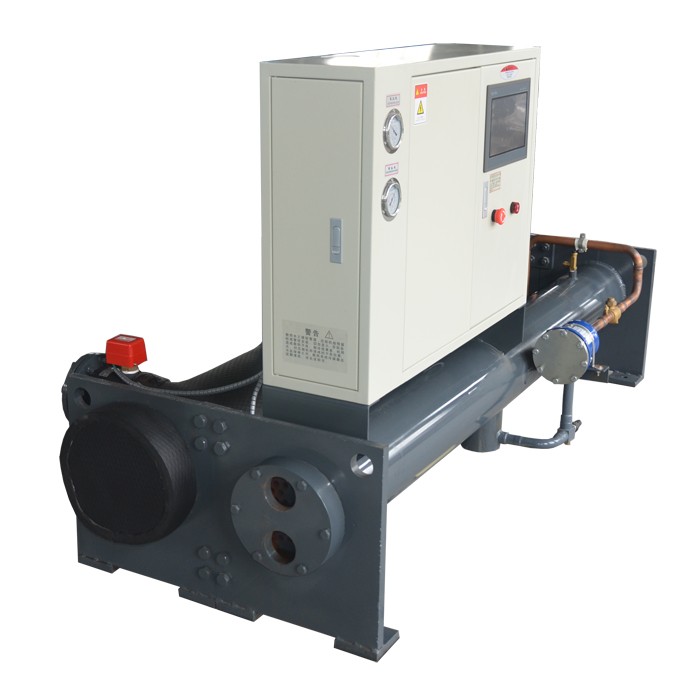

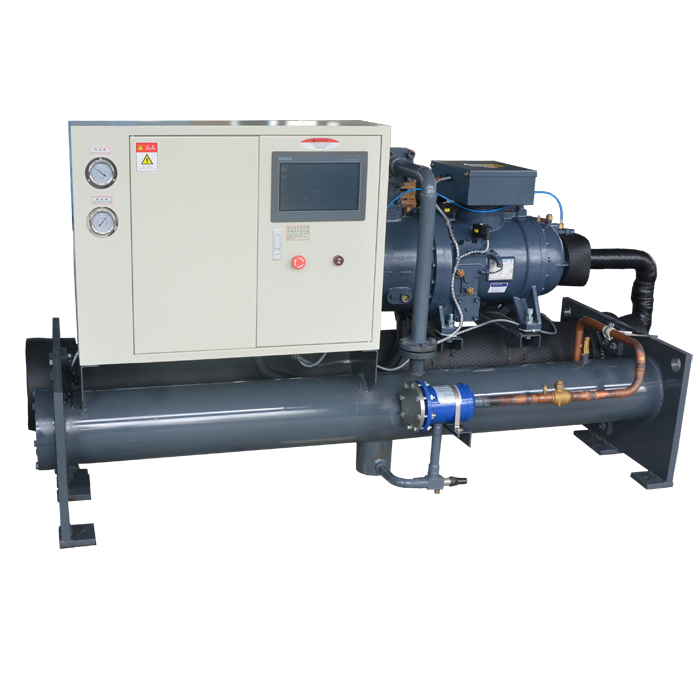

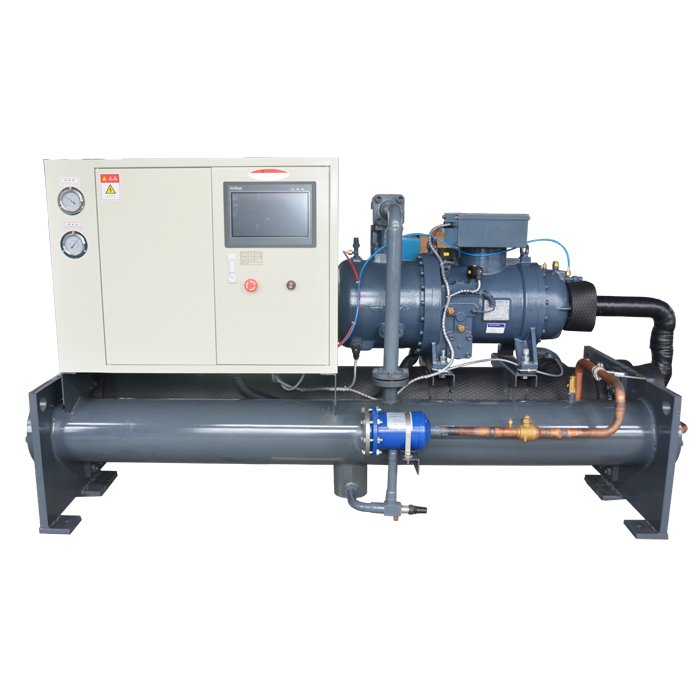

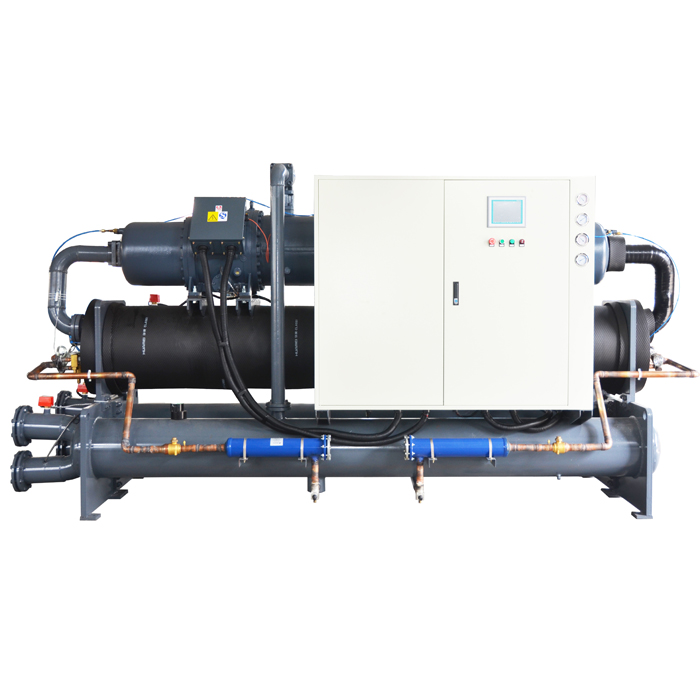

water-cooled screw chiller

Product manual: Air-cooled screw chillers using advanced production technology, excellent quality, compact structure, beautiful appearance can be widely used in plastic electroplating electronic manufacturing pharmaceutical chemical food processing refrigeration and refrigeration and other industria...
National advisory hotline0086 755-23418626
Consult us
  • Product description
  • Product parameters
  • Related products
  • Product purchase
Product manual:
Air-cooled screw chillers using advanced production technology, excellent quality, compact structure, beautiful appearance can be widely used in plastic electroplating electronic manufacturing pharmaceutical chemical food processing refrigeration and refrigeration and other industrial establishments and hotels, shopping malls, office buildings and other civil buildings Air Conditioning System.

Unit features:
1, the use of imported international brands BITZER Germany (Bitzer) HANBELL China Taiwan (Han Chung) higher energy-saving compressor compressor match with high-quality condenser and evaporator, high efficiency, low noise, stable performance, long life. Industrial PLC unit centralized control, with the energy ratio of the compressor can be timely and accurate control unit cooling capacity and cooling load matching to ensure the best efficiency of the unit to run and reduce operating costs.
2, the internal integration of low-temperature water-free low-voltage lack of phase delay start anti-phase overload motor overheat oil pressure and many other security protection and processing functions.
3, the entire Chinese user interface, menu-style prompts, can be set to run the unit state, home appliances of the operating environment.
4, the capacity control can be four-stage (100% -75% -50% -25%) or three-stage (100% -66% -33%) and non-segment control system.
5, a unique built-in hydraulic system, no need to ensure that the compressor oil pump to maintain the best lubrication, oil separator with double-layer filter, oil filter effect, heat converter can play the maximum capacity.
6, high-performance internal thread brass, enhanced heat transfer effect, more energy-efficient higher education. The use of the latest CAD / CAM design and processing technology, CNC machining center production is completed, compact, small size 15. Durable. U-shaped structure of the heat transfer tube bundle, easy maintenance, to prevent leakage of refrigerant phenomenon.
7, the selection of all imported steel pipe, high-speed drilling and other professional equipment manufacturing, steel fins closer contact, heat transfer efficiency, with small size, light weight, the structure is more compact platform management and so on.
Water-cooled screw chiller series Technical parameters:
Parameter   model LT-040WSH LT-050WSH LT-060WSH LT-075WSH LT-085WSH LT-100WSH LT-120WSH LT-140WSH LT-160WSH LT-180WSH LT-200WSH LT-220WSH LT-240WSH LT-280WSH LT-320WSH LT-360WSH LT-400WSH LT-440WSH LT-480WSH
Cooling capacity kcal/h              103888 130204 152564 212420 241660 276060 342280 375820 405060 517720 595120 675100 763680 751640 810120 1035440 1190240 1350200 1527360
KW  120.8 151.4 177.4 247 281 321 398 437 471 602 692 785 888 874 942 1204 1384 1570 1776
Enter the total power KW  30.9 37.9 43.9 56.8 65 74 90.3 97.6 112.2 135.9 153.9 172.4 194.8 195.2 224.4 271.8 307.8 344.8 389.6
Maximum operating current A 70 94 128 123 140 160 195 221 254 291 333 383 431 442 508 582 666 766 862
power supply
3ph-380v 50HZ(200V/220V/415V  50HZ/60HZ))











Refrigerant name
R22











Charge kg 22 27 33 42 48 55 68 77 88 105 112 125 137 160 182 205 230 225 278
control method
External balance thermostatic expansion valve











compressor Types of
Semi-closed screw type











power KW  37.3 46.1 51.9 69.9 81.7 96.2 109.4 97.6 112.2 135.9 153.9 172.4 194.8 97.6×2 112.2×2 135.9×2 153.9×2 172.4×2 194.8×2
start up
Y-△











Energy adjustment range 0-25-50-75-100











Evaporator Types of
Korean shell and tube











Frozen water m3/h 20.7 26 30.4 42.3 48.2 55 68.2 74.9 80.7 103.2 118.6 134.6 152.2 151.7 178.8 196 222.2 241 268.6
Water inlet and outlet pipe diameter lnch 3" 3" 3" 3" 4" 4" 4" 5" 5" 6" 6" 6" 6" 6" 6" 8" 8" 8" 8"
Condenser Types of
Shell and tube











Frozen water m3/h 26 32.5 37.8 52.1 59.3 67.7 83.7 91.6 100 126.5 145 164.1 185.6 186.1 219.8 241.4 275.1 298.2 330.5
Water inlet and outlet pipe diameter lnch 3" 3" 3" 3" 4" 4" 4" 5" 5" 6" 6" 6" 6" 5"×2 5"×2 6"×2 6"×2 6"×2 6"×2
Safety protection device Compressor overheating protection, unit overload protection devices, high and low pressure protection devices, frost protection devices, power reverse phase / phase protection.











Fusible, water opening and closing











Mechanical Dimensions long mm 1960 2130 2450 2450 2750 2750 2750 2750 3460 3460 3460 3460 3460 3750 3750 4230 4230 4230 4420
width mm 855 855 985 985 1050 1050 1050 1050 1250 1350 1350 1350 1550 1320 1320 1580 1580 1580 1760
high mm 1540 1540 1600 1600 1600 1600 1730 1730 1730 1760 1760 1760 1820 2150 2150 2230 2230 2230 2360
Unit weight kg 820 950 1120 1300 1560 1720 2030 2200 2410 2630 2950 3050 3160 4230 4730 5380 5810 5920 6450
Operating weight kg 970 1060 1270 1480 1780 1960 2250 2430 2470 2920 3210 3270 3420 4560 5150 5860 6050 6330 6730
Note:
1. Cooling capacity is based on chilled water inlet temperature 12 ℃, outlet temperature 7 ℃; cooling air temperature 30 ℃, the outlet temperature calculated 35 ℃;
Chilled water temperature difference: 3 ℃ to 8 ℃ cooling water temperature range: 18 ℃ to 30 ℃;
The above specifications are subject to change without notice.
