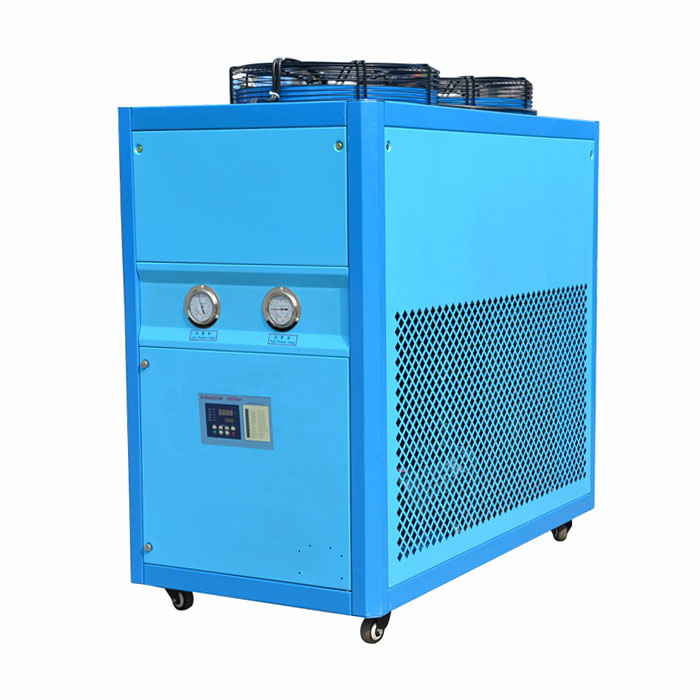

Product manual:
Air-cooled chillers using advanced production technology, superior quality, compact structure, beautiful appearance widely used in plastic electroplating electronic manufacturing pharmaceutical chemical food processing laser ultrasonic cooling printing industry, can accurately control the modern industrial mechanized production of the required temperature , Thus greatly improving the production efficiency and product quality.

Unit features:
1, the compressor used in Japan DAIKIN COPELAND brands such as the United States compressor, low noise power and durable;
2, the condenser with aluminum fin, heat dissipation effect;
3, all stainless steel water tank evaporator, built-in automatic replenishment device;
4, selection of imported pumps, stainless steel pump body for customers to choose, to prevent secondary pollution;
5, the use of microcomputer digital temperature controller, integrated operation, simple and practical, high control accuracy;
6, the use of box structure, nice, easy to move;
7, the unit configuration is lack of reverse phase protection motor overload protection high and low voltage protection, low temperature protection and other safety protection devices, the system more secure and stable.

AW series of industrial chiller parameters (air-cooled):

Item / model number		LT-0.6A	LT-1A	LT-2A	LT-3A	LT-5A	LT-6A	LT-8A	LT-10A	LT-12A	LT-15A	LT-20A	LT-25A	LT-30A	LT-40A	LT-50A
Standard cooling capacity	kcal/h	1270	2400	4423	6693	10983	12932	17420	22695	25060	35883	47331	52098	71792	94198	118792
	KW	1.47	2.78	5.13	7.76	12.7	15	20.2	26.3	29.1	41.6	54.9	60.4	83.2	109.2	137.8
input power	KW	0.9	1.35	2.1	2.82	5	5.6	7.25	9.15	11	14	18.5	22	30.8	37.6	48
power supply		1PH-220V  50HZ				3ph-380v 50HZ
Refrigerant	name	R22(R134a/407c)
	control method	Capillary		External balance thermostatic expansion valve
compressor	Types	Fully enclosed scroll type (piston type)					Fully enclosed scroll
	Power (KW)	0.45	0.75	1.5	2.25	3.75	4.5	6	7.5	9	11.25	15	18.75	22.5	30	37.5
Condenser	Types	High efficiency copper finned aluminum finned + low noise external rotor fan
	Cooling air volume (m3h)	750	1000	2000	3000	5000	6000	8000	10000	12000	15000	20000	25000	30000	40000	50000
Evaporator	Types	Water tank coil (shell and tube)
	Chilled water (m3 / h)	0.28	0.52	1	1.42	2.4	2.8	4.2	4.62	5.4	7.6	9.8	11	15	20	25
	Water tank capacity (L)	10	25	30	60	60	70	150	180	270	300	400	400	540	630	720
	Water inlet and outlet pipe diameter	1/2"	1/2"	1/2"	1"	1"	1"	1-1/2"	1-1/2"	2"	2"	2"	2-1/2"	2-1/2"	3"	3"
Water pumps	Power (KW)	0.37	0.37	0.37	0.37	0.75	0.75	0.75	0.75	1.2	1.5	2.25	2.25	3.75	3.75	5.5
	Yang Cheng (m)	20	20	20	20	20	20	20	20	20	20	20	20	20	20	20
safety protection		Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence / phase protection, exhaust overheating protection.
Mechanical Dimensions	long（MM）	685	680	770	1000	1120	1150	1250	1500	1580	2080	2110	2110	2300	2430	2430
	width（MM）	400	420	500	480	530	500	680	770	790	780	850	850	930	1185	1185
	high（MM）	850	850	950	1100	1200	1200	1350	1400	1450	1650	1600	1700	1650	1710	1710
Mechanical dimensions	kg	50	73	95	128	172	190	310	350	510	750	850	950	1080	1360	1550

Note: 1. Cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, cooling water inlet and outlet water temperature 30 ℃ / 35 ℃. 2. Operating range: chilled water temperature range: 5 ℃ to 35 ℃; chilled water temperature difference between 3: 8 ℃; * The right to change these parameters or dimensions without prior notice is reserved.

•
